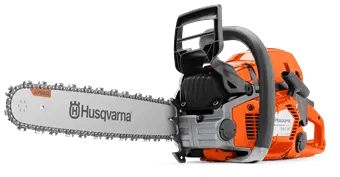

HUSQVARNA 562 XP® AutoTune

Description

The Husqvarna 562 XP® was developed for professional loggers and skilled land owners. The commercial petrol chainsaw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation with large air filter and the ability to fit 24″ bars. Our 562 XP® unique X-Torq® engine technology provides more power when you need it, up to 20% less fuel consumption and 75% less exhaust emissions. RevBoost™ provides instant high chain speed for extra efficient de-limbing.

• Bar length (inch)
  20″
• Cylinder displacement
  59.8 см³
• Power output
  3.5 kW
• Weight (excl. cutting equipment)
  6.1 kg

FEATURES



Features

19 / 21

AutoTune

AutoTune gives optimum engine performance throughout automatic engine settings. No time spent on carburettor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.

Powerful and Efficient X-TORQ® Engine

Our X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.

Air Injection

Extends the interval between filter cleaning, improving efficiency and increases engine life.

Flip-Up Fuel Cap

The flip-up fuel cap is easy to open and close when refueling, even if you are wearing thick gloves.

Fast acceleration

Low weight on all moving engine parts means fast acceleration.

Two mass principle

Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.

Adjustable oil pump

Adjustable oil pump allows you to adjust chain lubrication to suit all working applications.

Quick-Release Air Filter

Easily remove and replace the filter after cleaning

Magnesium crankcase

Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.

Combined Choke/Stop Control

Combined choke/stop control allows for easier starting and reduces the risk of the engine flooding.

Snap-lock

Snap-lock cylinder cover saves time when changing spark plugs and cleaning.

Snap-Lock Cylinder Cover

Saves time when changing spark plugs and cleaning

Three-piece crankshaft

Forged three-piece crankshaft giving maximum durability for the toughest applications.

Quick chain adjustments

Side-mounted chain tensioner is conveniently located to allow quick and easy chain adjustment.

Slimmed-down design

Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.

Felling marks

Distinct and coloured felling marks for better felling precision.

Fuel Indicator

Transparent fuel indicator makes it easy to check fuel level

Smart Start® Technology

Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.

Inertia chain brake

Effective inertia-activated chain brake

Easy starting

Air purge for very easy starting.

Retained bar nuts

The retaining function prevents losing the bar nuts.

Engine	20″ RSN 3/8″ 1,5 mm C85 Art no: 970 50 21‑40	18″ RSN 3/8″ 1,5 mm C85 Art no: 970 50 21‑38
Chain speed at max power	21.3 m/s	21.3 m/s
Cylinder displacement	59.8 cm³	59.8 cm³
Power output	3.5 kW	3.5 kW
Emission
Exhaust emissions (CO2 EU V)	777 g/kWh	777 g/kWh
Equipment
Recommended bar length, min	38 cm	38 cm
Recommended bar length, max	70 cm	70 cm
Pitch	3/8″	3/8″
Chain type	C85	C85
Bar length	50 cm	45 cm
Bar length (inch)	20 in	18 in
Dimensions
Weight (excl. cutting equipment)	6.1 kg	6.1 kg
Sound and noise
Sound pressure level at operators ear	106 dB(A)	106 dB(A)
Sound power level, guaranteed (LWA)	118 dB(A)	118 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle	3.2 m/s²	3.2 m/s²
Equivalent vibration level (ahv, eq) rear handle	5 m/s²	5 m/s²
